- Place of Origin: Made In China
- Brand Name: ECHU
- Model Number: RV-K
Application: A flexible power and control cable designed for fixed applications. Manufactured with flexible conductors in order to facilitate installations with sinuous courses.
Standards: UNE 21123-2, IEC 502-1, EN 50265, IEC 60332-1
Conductor: Class 5 flexible plain copper conductor to BS EN 60228:2005 (previously BS6360)
Insulation: XLPE (Cross-Linked Polyethylene) Type DIX-3 to HD603
Sheath: PVC (Polyvinyl Chloride) Type DMV-18 to HD603
Sheath Colour: Black
Voltage Rating: 600/1000V
Temperature Rating: -15°C to 90°C
Minimum Bending Radius: 5 x overall diameter
Core Identification:
1 Core: Black
2 Cores: Blue, Brown
3 Cores including Earth Core: Blue, Brown, Green/Yellow
3 Cores: Brown, Black, Grey
4 Cores including Earth Core: Brown, Black, Grey, Green/Yellow
4 Cores: Brown, Black, Grey, Blue
5 Cores including Earth Core: Brown, Black, Grey, Green/Yellow, Blue

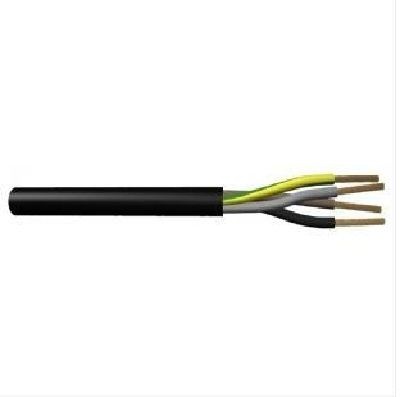

RV-K Powerflex Cable
| No. of Cores x Nominal Cross Sectional Area # x mm² | Nominal Overall Diameter mm |
|---|---|
| 1 x 2.5 | 6.2 |
| 1 x 4.0 | 6.7 |
| 1 x 6.0 | 7.3 |
| 1 x 10.0 | 8.2 |
| 1 x 16.0 | 9.2 |
| 1 x 25.0 | 11.0 |
| 1 x 35.0 | 12.1 |
| 1 x 50.0 | 13.8 |
| 1 x 70.0 | 15.7 |
| 1 x 95.0 | 17.6 |
| 1 x 120.0 | 19.2 |
| 1 x 150.0 | 21.5 |
| 1 x 185.0 | 23.9 |
| 1 x 240.0 | 26.9 |
| 1 x 300.0 | 29.6 |
| 1 x 400.0 | 33.8 |
| 1 x 500.0 | 37.4 |
| 1 x 630.0 | 42.7 |
| 2 x 1.5 | 8.2 |
| 2 x 2.5 | 9.2 |
| 2 x 4.0 | 10.3 |
| 2 x 6.0 | 11.3 |
| 2 x 10.0 | 13.2 |
| 2 x 16.0 | 14.9 |
| 3 x 1.5 E | 8.9 |
| 3 x 2.5 E | 9.8 |
| 3 x 4.0 E | 11.0 |
| 3 x 6.0 E | 12.1 |
| 3 x 10.0 E | 14.3 |
| 3 x 16.0 | 16.4 |
| 3 x 25.0 | 21.3 |
| 3 x 35.0 | 24.1 |
| 3 x 50.0 | 27.8 |
| 3 x 70.0 | 30.8 |
| 4 x 1.5 E | 9.7 |
| 4 x 2.5 E | 10.7 |
| 4 x 4.0 E | 12.0 |
| 4 x 6.0 E | 13.4 |
| 4 x 10.0 E | 15.7 |
| 4 x 16.0 | 18.2 |
| 4 x 25.0 | 24.1 |
| 4 x 35.0 | 26.3 |
| 4 x 50.0 | 31.3 |
| 4 x 70.0 | 36.1 |
| 4 x 95.0 | 40.2 |
| 4 x 120.0 | 44.6 |
| 4 x 150.0 | 49.8 |
| 4 x 185.0 | 56.1 |
| 4 x 240.0 | 64.5 |
| 5 x 1.5 E | 10.4 |
| 5 x 2.5 E | 11.6 |
| 5 x 4.0 E | 13.2 |
| 5 x 6.0 E | 14.7 |
| 5 x 10.0 E | 17.2 |
| 5 x 16.0 E | 20.2 |
| 5 x 25.0 E | 25.6 |
| 5 x 35.0 E | 29.3 |
| 5 x 50.0 E | 34.5 |
