- Place of Origin: Made In China
- Brand Name: ECHU
- Model Number: PVC Cable
Detail Description or Construction

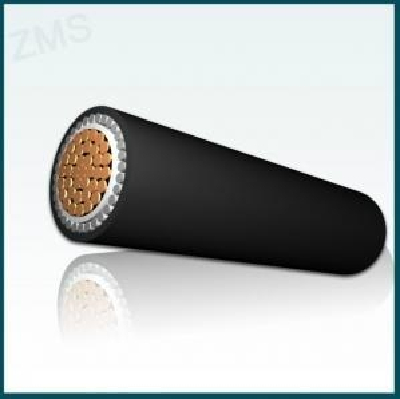

single core PVC insulated and sheathed armored cable(PVC/AWA/PVC Cable)
Executive standard
GB/T12706.1-2002(Equivalent IEC60502-1)Rated Voltage 1Kv (Um=1.2Kv) power cable
Application
PVC/AWA/PVC Cable applicable to the well, underwater with the bottom of sea, the cable cans bear the bigger pressure with lead to pull the dint.
Test voltage(ac)
3.5 kV/5min
Voltage
0.6/1kV
Conductor
Copper or Aluminum
Armored
steel-wire armour
Insulation
PVC (Premature Ventricular Contraction)
Sheath
PVC (Premature Ventricular Contraction)
Sheath Color
Black
Core Number
1 core
Working conditions
1) This maximum working temperature of the conductor is 70℃
2) During having a short（lasting less than 5 seconds）the maximum temperature of the cable conductor for shall not be above 160℃
3) Environment temperature should be no lower than 0℃ for laying the cable
4) Bending radius allowance of the cable;
single core cable: no steel tape cable 20D: steel tape cable 15D.
3 core cable: no steel tape cable 15D; steel tape cable 12D.
| PVC/AWA/PVC Cables BS6346 | ||||
| Nominal Conductor Area(mm2) | No.and Diameter of Wire(no./mm) | Radial Tdickness of Insulation(mm) | Approx.Overall Diameter(mm) | Approx.Weigdt (kv/km) |
| 50 | 19/1.78 | 1.4 | 19.1 | 760 |
| 70 | 19/2.14 | 1.4 | 21.1 | 1010 |
| 95 | 19/2.52 | 1.6 | 23.4 | 1330 |
| 120 | 37/2.03 | 1.6 | 26.3 | 1690 |
| 150 | 37/2.25 | 1.8 | 28.3 | 2010 |
| 185 | 37/2.52 | 2.0 | 30.8 | 2450 |
| 240 | 61/2.25 | 2.2 | 34.1 | 3120 |
| 300 | 61/2.52 | 2.4 | 37.0 | 3810 |
| 400 | 61/2.85 | 2.6 | 42.0 | 4890 |
| 500 | 61/3.20 | 2.8 | 45.6 | 5990 |
| 630 | 127/2.52 | 2.8 | 49.7 | 7510 |
| 800 | 127/2.85 | 2.8 | 55.8 | 9590 |
| 1000 | 127/3.20 | 3.0 | 61.0 | 11820 |
