Detail Description or Construction

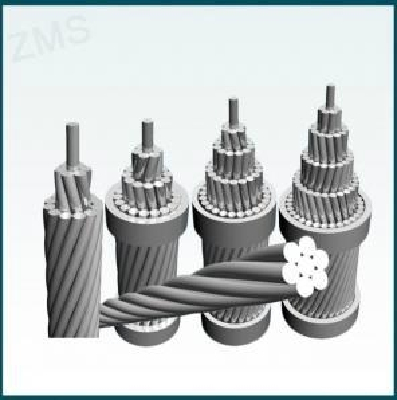

AAAC Conductor-- All Aluminium Alloy Conductor
Conductor
This bare concentric-lay-stranded conductor, made from round aluminum alloy 6201-T81 wires, is constructed with a central core surrounded by one or more layers of helically laid wires.
Application
On aerial circuit that require a larger mechanical resistance than AAC, and a better corrosion resistance than the one produced by the ACSR. As provided by the Aluminum Association.
Standards / Testing Specifications
IEC 61089, BS 3242, DIN 48201, ASTM B399, BS EN50183, GB/T 1179-2008
Installation
AAAC cable can be installed in air. It is recommended that the installation instructions indicated by the Local Electric Code, or any equivalent, be followed, so that the safeguarding of persons and the integrity of the product will not be affected by deficiencies in the installation.
Standard Packaging
As provided by standards and customer’s requirement.
| AAAC-Technical characteristics / DIN 48201 | ||||||||
| Conductor size (mm2) | Alloy area (mm2) | Number of wires | Diameter of wire (mm) | Overall diameter of conductor (mm) | Linear mass (kg/km) | Rated tensile strength (daN) | Maximum resistance D.C. at 20℃ (Ω/km) | Current Rating (A) |
| 16 | 15.89 | 7 | 1.70 | 5.10 | 43 | 444 | 2.0910 | 105 |
| 25 | 24.25 | 7 | 2.10 | 6.30 | 66 | 677 | 1.3703 | 135 |
| 35 | 34.36 | 7 | 2.50 | 7.50 | 94 | 960 | 0.9669 | 170 |
| 50 | 49.48 | 7 | 3.00 | 9.00 | 135 | 1382 | 0.6714 | 210 |
| 50 | 48.35 | 19 | 1.80 | 9.00 | 133 | 1350 | 0.6905 | 210 |
| 70 | 65.81 | 19 | 2.10 | 10.50 | 181 | 1838 | 0.5073 | 255 |
| 95 | 93.27 | 19 | 2.50 | 12.50 | 256 | 2605 | 0.3579 | 320 |
| 120 | 116.99 | 19 | 2.80 | 14.00 | 322 | 3268 | 0.2854 | 365 |
| 150 | 147.11 | 37 | 2.25 | 15.80 | 406 | 4109 | 0.2274 | 425 |
| 185 | 181.62 | 37 | 2.50 | 17.50 | 500 | 5073 | 0.1842 | 490 |
| 240 | 242.54 | 61 | 2.25 | 20.30 | 670 | 6774 | 0.1383 | 585 |
| 300 | 299.43 | 61 | 2.50 | 22.50 | 827 | 8363 | 0.1120 | 670 |
| 400 | 400.14 | 61 | 2.89 | 26.00 | 1104 | 11176 | 0.0838 | 810 |
| 500 | 499.63 | 61 | 3.23 | 29.10 | 1379 | 13960 | 0.0671 | 930 |
| 625 | 626.2 | 91 | 2.96 | 32.60 | 1732 | 17490 | 0.0540 | 1075 |
| 800 | 802.09 | 91 | 3.35 | 36.90 | 2218 | 22402 | 0.0418 | 1255 |
| 1000 | 999.71 | 91 | 3.74 | 41.10 | 2767 | 27922 | 0.0335 | 1450 |
| AAAC IEC61089 Technical characteristics of A2 conductors | |||||||
| Code Number | Area | Number of wires | Diameter of wire | Diameter of conductor | Linear mass | Rated strenght | D.C. resistance |
| mm2 | mm | mm | Kg/km | kN | Ω/km | ||
| 16 | 18.4 | 7 | 1.83 | 5.49 | 50.4 | 5.43 | 1.7896 |
| 25 | 28.8 | 7 | 2.29 | 6.87 | 78.7 | 8.49 | 1.1453 |
| 40 | 46.0 | 7 | 2.89 | 8.67 | 125.9 | 13.58 | 0.7158 |
| 63 | 72.5 | 7 | 3.36 | 10.80 | 198.3 | 21.39 | 0.4545 |
| 100 | 115.0 | 19 | 2.78 | 13.90 | 316.3 | 33.95 | 0.2877 |
| 125 | 144.0 | 19 | 3.10 | 15.50 | 395.4 | 42.44 | 0.2302 |
| 160 | 184.0 | 19 | 3.51 | 17.55 | 506.1 | 54.32 | 0.1798 |
| 200 | 230.0 | 19 | 3.93 | 19.65 | 632.7 | 67.91 | 0.1439 |
| 250 | 288.0 | 19 | 4.39 | 21.95 | 790.8 | 84.68 | 0.1151 |
| 315 | 363.0 | 37 | 3.53 | 24.71 | 998.9 | 106.95 | 0.0916 |
| 400 | 460.0 | 37 | 3.98 | 27.86 | 1268.4 | 135.81 | 0.0721 |
| 450 | 518.0 | 37 | 4.22 | 29.54 | 1426.9 | 152.79 | 0.0641 |
| 500 | 575.0 | 37 | 4.45 | 31.15 | 1585.5 | 169. 76 | 0.0577 |
| 560 | 645.0 | 61 | 3.67 | 33.03 | 1778.4 | 190.14 | 0.0516 |
| 630 | 725.0 | 61 | 3.89 | 35.01 | 2000.7 | 213.90 | 0.0458 |
| 710 | 817.0 | 61 | 4.13 | 37.17 | 2254.8 | 241.07 | 0.0407 |
| 800 | 921.0 | 61 | 4.38 | 39.42 | 2540.6 | 271.62 | 0.0361 |
| 900 | 1036.0 | 91 | 3.81 | 41.91 | 2861.1 | 305.58 | 0.0321 |
| 1000 | 1151.0 | 91 | 4.01 | 44.11 | 3179.0 | 339.53 | 0.0289 |
| 1120 | 1289.0 | 91 | 4.25 | 46.75 | 3560.5 | 380.27 | 0.0258 |
| 1250 | 1439.0 | 91 | 4.49 | 49.39 | 3973.7 | 424.41 | 0.0231 |
| AAAC-Technical characteristics / BS EN50183 | ||||||||
| Code Word | Conductor size | Stranding | Sectional Area | Diameter of Conductor | Linear Density | Rated Strength | D.C. Resistance at 20°C | Current Rating |
| mm2 | No. /mm | mm2 | mm | kg/km | kgf | Ω/km | A | |
| Box | 15 | 7/1.85 | 18.82 | 5.55 | 51 | 537 | 1.74950 | 93 |
| Acacia | 20 | 7/2.08 | 23.79 | 6.24 | 65 | 680 | 1.38400 | 110 |
| Almond | 25 | 7/2.34 | 30.10 | 7.02 | 82 | 861 | 1.09340 | 128 |
| Cedar | 30 | 7/2.54 | 35.47 | 7.62 | 97 | 1014 | 0.92810 | 132 |
| Deodar | 35 | 7/2. 77 | 42.18 | 8.31 | 115 | 1205 | 0.78040 | 148 |
| Fir | 40 | 7/2.95 | 47.84 | 8.85 | 131 | 1367 | 0.68800 | 161 |
| Hazel | 50 | 7/3.30 | 59.87 | 9.90 | 164 | 1711 | 0.54980 | 184 |
| Pine | 60 | 7/3.61 | 71.65 | 10.83 | 196 | 2048 | 0.45940 | 204 |
| Holly | 70 | 7/3.91 | 84.05 | 11.73 | 230 | 2402 | 0.39170 | 222 |
| Willow | 75 | 7/4. 04 | 89.73 | 12.12 | 245 | 2565 | 0.36690 | 233 |
| 80 | 7/4.19 | 96.52 | 12.57 | 264 | 2758 | 0.34410 | 250 | |
| 90 | 7/4.44 | 108.00 | 13.32 | 298 | 3112 | 0.30230 | 260 | |
| Oak | 100 | 7/4.65 | 118.90 | 13.95 | 325 | 3398 | 0.27690 | 272 |
| 100 | 19/2.82 | 118.70 | 14.10 | 326 | 3393 | 0.27870 | 270 | |
| Mulberry | 125 | 19/3.18 | 150. 90 | 15.90 | 415 | 4312 | 0.21920 | 319 |
| Ash | 150 | 19/3.48 | 180.70 | 17.40 | 497 | 5164 | 0.18310 | 354 |
| Elm | 175 | 19/3.76 | 211.00 | 18.80 | 580 | 6030 | 0.15680 | 385 |
| Poplar | 200 | 37/2.87 | 239.40 | 20.09 | 659 | 8841 | 0.13850 | 414 |
| 225 | 37/3.05 | 270.30 | 21.35 | 744 | 7724 | 0.12270 | 430 | |
| Sycamore | 250 | 37/3.22 | 303.20 | 22.54 | 835 | 8664 | 0.10930 | 487 |
| Upas | 300 | 37/3.53 | 362.10 | 24.71 | 997 | 10350 | 0.09156 | 527 |
| Walnut | 350 | 37/3.81 | 421.80 | 26.67 | 1162 | 12053 | 0.07860 | 610 |
| Yew | 400 | 37/4.06 | 479.00 | 28.42 | 1319 | 13685 | 0.06921 | 629 |
| Totara | 425 | 37/4.14 | 498.10 | 28.98 | 1372 | 14233 | 0.06656 | 640 |
| Rubus | 500 | 61/3.50 | 586.90 | 31.50 | 1620 | 16771 | 0.05662 | 760 |
| Araucaria | 700 | 61/4.14 | 821.10 | 37.26 | 2266 | 23450 | 0.04047 | 842 |
